Orcauboat is committed to providing integrated solutions for the comprehensive treatment of water environment. At the application level, deep water surface high-frequency rigid demand scenarios: Committed to providing integrated solutions for intelligent (unmanned) maintenance and management of urban waters, detonating industry applications; technical level Extend the diversified applications of unmanned driving on the surface, and empower the diversified scenarios of "Smart Ship" in the water area.

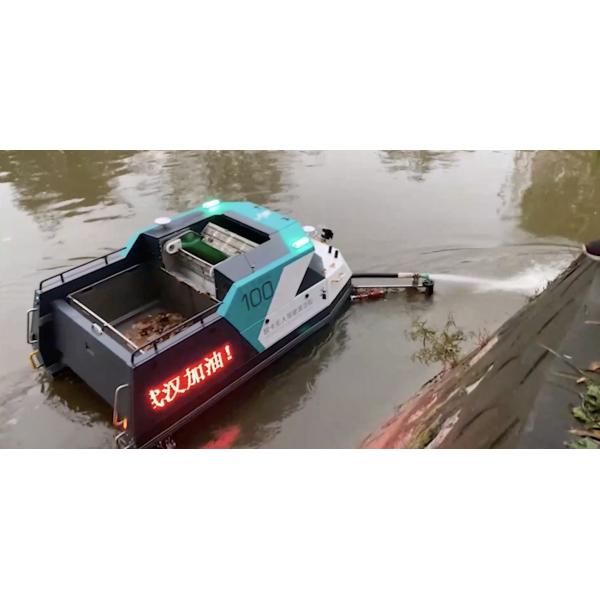

TITAN unmanned cleaning boat is a surface service robot that integrates surface garbage cleaning, water quality testing, and intelligent inspections. The main application scenarios are urban inland rivers, reservoirs, landscape lakes and other waters.
Core function:
garbage cleaning, dry and wet separation, water quality detection, intelligent path planning, return to home with full load of garbage
| Dimension | TITAN 100 | Traditional labor | Semi-automatic machinery |
| Maintenance area | 24.7acres/boat | 3.2acres/person | 16.4acres/person |
| Length of work | 12h/day (continuous charging) | 6h/day | 6h/day |
| Safety | Driverless, 100% safe | People + tools, high labor risk | Manned driving, driving risk is high |
| Response efficiency | 24h online response | Working time response | Working time response |
| Energy consumption | Clean energy, charging at night, working during the day | Manpower | Gasoline energy, need to be purchased at the petrol station |
| Quality of work | Machine Cleanup, quality maintain unity | Affected by work status and attitude | Affected by work status and attitude |
| Skill requirements | Simple smart machine operation, no certificate requirements | Skilled in using tools, skilled in ferrying boats, swimming license required | Skilled in mechanical boat driving, swimming license required, crew certificate required |
| Name | Parameter |
| Hull size|Length, width and height/mm (extension arm not included) | Length 3150 × width 1660 × height 1480 |
| Hull size|Length, width and height/mm (standard 1m extension arm) | Length 4030 × width 2380 × height 1480 |
| Hull material | Aluminum alloy |
| Hull weight (no load) | 430kg |
| Rated load | 100kg |
| Charging time | 5 hours |
| Battery life | 8 hours |
| Rated storage volume | 0.45m³ |
| Working minimum water depth | 800mm |
| Safety protection and dustproof design | IP55 |
| Cleaning speed | 1.5m/s |
Product Highlights :
High-precision positioning: Based on the high-precision positioning of RTK, the unmanned ship can realize centimeter-level water surface positioning. Can better deal with complex water scenes.
Intelligent path optimization: With the support of intelligent algorithms, the unmanned ship can plan and optimize the clean path, which can realize the efficient and safe operation of the clean ship.
Configuration service
Basic Configuration: silver metal charging cabinet
Optional modules: water quality monitoring module, coastal flushing module, garbage weighing module
FAQ
1. What does your unmanned ship do?
(1) The water area is automatically cleaned. The unmanned ship can automatically clean the floating garbage on the water according to the task setting. Similar to the sweeping robot at home, the unmanned ship is a surface cleaning robot;
(2) By carrying water quality sensors, real-time monitoring and return of water quality data, information management of the water area;
(3) Based on the exclusive water area AI visual recognition algorithm, it can automatically conduct video inspections of the water area and shoreline, and alert the staff in time after detecting illegal fishing or drowning
2. What type of garbage can it be cleaned?
Mainly floating objects on the water surface, such as mineral water bottles and other plastic garbage, fallen leaves, etc.
